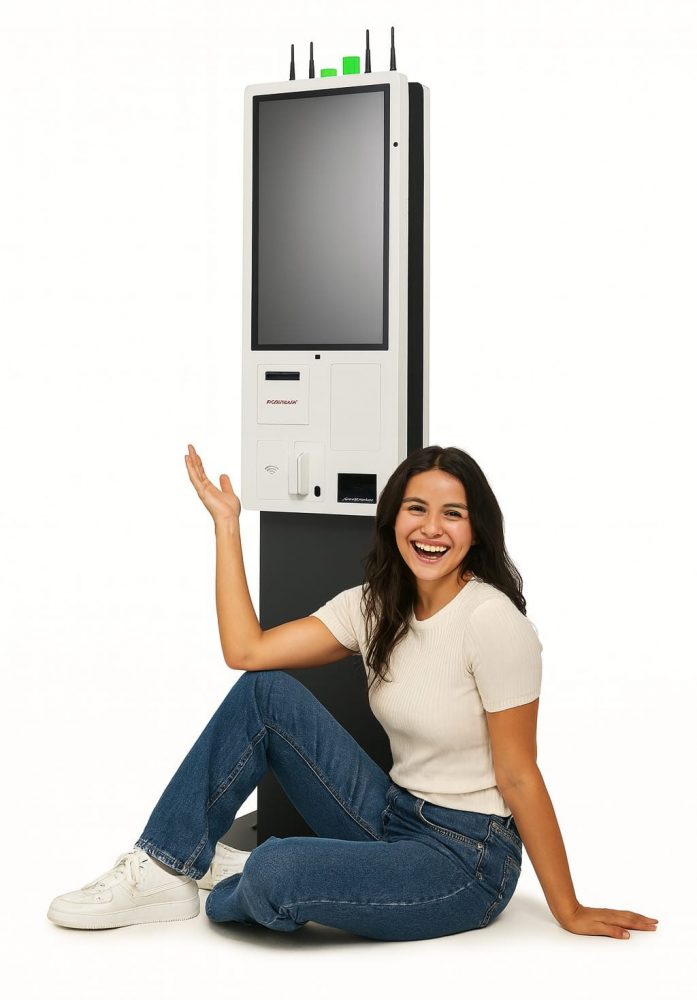

Modern Ordering Kiosk for Hospitality and Retail
The Ordering Kiosk Cachet is the ideal solution for businesses that want to digitize their service and give customers more independence. Whether as a self-order terminal in restaurants, for click & collect in retail, or for digital reservation systems – Cachet combines modern design with powerful technology to ensure a seamless user experience.
Benefits of our Ordering Kiosk Cachet:
- 32-inch PCAP touchscreen with a flat, intuitive user interface
- Flexible installation: floor-standing or wall-mounted, single- or double-sided
- Modular design for easy maintenance and quick customization
- Fully adaptable to a wide range of applications
- Perfect for ordering, payment, reservations, and customer guidance
- Optimal solution for self-service concepts in hospitality, retail, and more
With Cachet, you enable your customers to order, pay, or access information quickly and conveniently – regardless of opening hours or staff availability. Whether for digital menus, ticketing, or wayfinding: the kiosk integrates elegantly into any environment and supports a smooth customer journey.
The Ordering Kiosk Cachet is a powerful digital ordering kiosk system that speeds up processes, reduces staff workload, and sustainably increases customer satisfaction – ideal for quick service restaurants, retail, or the event sector.
Ordering Kiosk Cachet – Specifications
Smart ordering kiosk for modern self-service concepts
The Cachet series is a high-performance ordering kiosk with a modular design, developed specifically for self-order and click & collect applications. Featuring a large 32-inch PCAP touchscreen with a flush-mounted build, it offers intuitive navigation and is perfectly suited for use in restaurants, retail, or public facilities.
The kiosk is available in different configurations: single- or double-sided floor-standing models as well as space-saving wall-mounted options. Premium build quality, a modern design, and well-structured cable management make Cachet both a functional and aesthetic solution for any high-traffic environment.
Thanks to its modular design, the kiosk is easy to maintain and can be expanded quickly when required. It supports a wide range of use cases – from ordering and payments to product information, ticketing, and digital wayfinding.
Key features include a high-performance printer with reversible output, a 2D barcode scanner, payment modules for multiple payment methods, and an optional camera for enhanced interactions. Built for 24/7 operation, its robust construction makes it ideal for busy, high-frequency locations.
Cachet combines advanced technology, modern design, and maximum flexibility in one system. Whether as an ordering kiosk in a quick service restaurant, a click & collect point in retail, or an information and ticketing station: with Cachet, you offer your customers a fast, convenient, and fully digital service experience.
Kiosk Cachet1 MB
Kiosk Over All Brochure2 MBSpecification
JK-3210 | JK-3230 | JK-3250 | |
|---|---|---|---|
Processor | Rockchip RK 339, Dual-core Cortex A72 + Quad-core Cortex A53 | Intel Bay Trail J1900 Quad Core, 2M Cache | Intel Kaby Lake U Core i3/i5 |
| System Memory | DDR4 4 GB | 1x DDR3L SO-DIMM slot, max. 8 GB | 1x DDR4 SO-DIMM slot, max 16 GB |
Storage Device | 32 GB eMMC + 1x microSD slot | 1x M.2 SSD [SATA Signal Only] | 1x DDR4 SO-DIMM slot, max. 16 GB |
| Intel vPro Support | N/A | N/A | Optional |
Power Supply | 1x 12V/60W + 1x 24V/60W | 1x 12V/60W + 1x 24V/60W | 1x 12V/60W + 1x 24V/60W |
| OS Support | Android 90*/Android 10.0 with GMS | Windows 7/POSReady 7/Windows Emedded 8.1 Industry/Windows 10 IoT | Windows 10 IoT 64 bit |
Serial Port | 2x RJ 50,5V/12V support on all COM ports | 1x DB9 + 2x RJ 50,5V/12V support on all COM ports | 1x DB9 + 2x RJ 50,5V/12V support on all COM ports |
| Standard USB Port | 1x USB 3.0 + 5x USB 2.0 | 1x USB 3.0 + 7x USB 2.0 | 2x USB 3.0 + 6x USB 2.0 |
OTG USB | 1x Micro-USB | N/A | N/A |
| Display Port | 1x HDMI | 1x HDMI | 1x HDMI |
LAN Port | 2x 10/100/1000 Mb | 2x 10/100/1000 Mb | 2x 10/100/1000 Mb |
| Audio | 2x Internal 3W speaker | 2x Internal 3W speaker | 2x Internal 3W speaker |
Camera | 1 MP wide Angle camera | 1 MP wide Angle camera | 1 MP wide Angle camera |
| WiFi | USB dongle (cannot coexist with 4G/LTE) | USB dongle (cannot coexist with 4G/LTE) | USB dongle (cannot coexist with 4G/LTE) |
Printer | 3″ thermal printer w/auto cutter, 200mm/sec max. | 3″ thermal printer w/auto cutter, 200mm/sec max. | 3″ thermal printer w/auto cutter, 200mm/sec max. |
Display & Touch
JK-3210 / JK-3230 / JK-3250 | |
|---|---|
LCD | 32″ |
| Resolution | 1920 x 1080 |
Touch | True-flat PCAP touch with multi-touch support |
Physical Dimension
JK-3210 / JK-3230 / JK-3250 | |
Dimension (H x W x D in millimeters) | 602 x 602 x 1902 (Single or dual sided);495 x 152 x 1152 (Wall-mounted) |
Weight (in kilograms) | 65 (Single sided); 81.5 (Dual sided); 35 (Wall-mounted) |
Environmental
JK-3210 / JK-3230 / JK-3250 | |
Operating Condition | 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD) |
| Storage Condition | -20°C – 70°C, 10%RH – 90%RH |
Specification
JK-2710 | JK-2732 | JK-2752 | |
|---|---|---|---|
Processor | Rockchip RK3399, Dual-core Cortex A72 up to 1.8GHz + Quad-core Cortex A53 up to 1.4GHz | Intel Elkhart Lake Celeron J6412,up to 2.60 GHz, 1.5M Cache | Intel Tiger Lake Core i3-1115G4E, up to 3.90 GHz, 6M Cache; Intel Tiger Lake Core i5-1145G7E, up to 4.10 GHz, 8M Cache; |
| System Memory | DDR4 4 GB | 1x DDR3L SO-DIMM slot, max. 16 GB | 1x DDR4 SO-DIMM slot, max 32 GB |
Storage Device | 32 GB eMMC + 1x microSD slot | 1x M.2 SSD [SATA Signal Only] | 1x M.2 SSD [SATA Signal Only] |
| Intel vPro Support | N/A | N/A | Yes, with Core i5 |
TPM Support | N/A | TPM 2.0 | TPM 2.0 |
| Power Supply | 1x 12V/60W + 1x 24V/60W | 1x 12V/84W + 1x 24V/60W | 1x 12V/84W + 1x 24V/60W |
OS Support | Android 9.0/Android 10.0 with GMS | Windows 10 IoT LTSC 64 bit/Windows 11 IoT GAC | Windows 10 IoT LTSC 64 bit/Windows 11 IoT GAC |
| Serial Port | 2x RJ 50,5V/12V support on all COM ports | 1x DB9 + 2x RJ 50,5V/12V support on all COM ports | 1x DB9 + 2x RJ 50,5V/12V support on all COM ports |
Standard USB Port | 1x USB 3.0 + 5x USB 2.0 | 2x USB 3.0 + 6x USB 2.0 | 4x USB 3.0 + 4x USB 2.0 |
| OTG USB | 1x Micro-USB | N/A | N/A |
Display Port | 1x HDMI | 1x HDMI | 1x HDMI |
| LAN Port | 1x 10/100 Mb | 2x 10/100/1000 Mb | 2x 10/100/1000 Mb |
Audio | 2x Internal 3W speaker | 2x Internal 3W speaker | 2x Internal 3W speaker |
| Internal Expansion Slot | N/A | 1x M.2 | 1x M.2 |
Display & Touch
JK-2710/ JK-2732/ JK-2752 | |
|---|---|
LCD | 27″ |
| Resolution | 1920 x 1080 |
Touch | True-flat PCAP touch with multi-touch support |
Physical Dimension
JK-2710/ JK-2732/ JK-2752 | |
Dimension (H x W x D in millimeters) | 602 x 602 x 1800(Single or dual sided);424 x 141x 1050(Wall-mounted) |
| Weight (in kilograms) | 50.3(Single sided); 63.8 (Dual sided); 22(Wall-mounted) |
Environmental
JK-2710/ JK-2732/ JK-2752 | |
Operating Condition | 0°C – 40°C, 20%RH – 90%RH |
| Storage Condition | -20°C – 70°C, 10%RH – 90%RH |
Standard Components
JK-2710 / JK-2732 / JK-2752 | |
Status Indicator | Range from 45cm to 80cm (for dark color objectives); Range from 45cm to 150cm (for light color objectives) |
| Camera | 1 MP wide angle camera |
Printer | 3” thermal printer w/auto cutter, 250mm/sec max |
Optional Components
JK-2710 / JK-2732 / JK-2752 | |
WiFi | USB dongle (cannot coexist with 4G/LTE) |
| EMV Payment Device Bracket Support | Custom bracket support for various EMV payment devices |
MSR | 3 tracks ISO or JISII (HID/VCOM selection) |
| Fingerprint Sensor | Optical type |
NFC/RFID Reader | Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols – tag read/write (ISO/IEC-18092) |
| 4G/LTE Communication | Support selected bands & countries with full SIM slot (mini-PCIe module) by request (cannot coexist with WiFi) |
Specification
JK-2410 | JK-2432 | JK-2452 | |
|---|---|---|---|
Processor | Rockchip RK3399, Dual-core Cortex A72 up to 1.8GHz + Quad-core Cortex A53 up to 1.4GHz | Intel Elkhart Lake Celeron J6412,up to 2.60 GHz, 1.5M Cache | Intel Tiger Lake Core i3-1115G4E, up to 3.90 GHz, 6M Cache; Intel Tiger Lake Core i5-1145G7E, up to 4.10 GHz, 8M Cache; |
| System Memory | DDR4 4 GB | 1x DDR4 SO-DIMM, max. 16 GB | 1x DDR4 SO-DIMM slot, max 32 GB |
Storage Device | 32 GB eMMC + 1x microSD slot | 1x M.2 SSD [SATA Signal Only] | 1x M.2 SSD [SATA Signal Only] |
| Intel vPro Support | N/A | N/A | Yes, with Core i5 |
TPM Support | N/A | TPM 2.0 | TPM 2.0 |
| Power Supply | 1x 12V/60W + 1x 24V/60W | 1x 12V/84W + 1x 24V/60W | 1x 12V/84W + 1x 24V/60W |
OS Support | Android 9.0/Android 10.0 with GMS | Windows 10 IoT LTSC 64 bit/Windows 11 IoT GAC | Windows 10 IoT LTSC 64 bit/Windows 11 IoT GAC |
| Serial Port | 2x RJ 50,5V/12V support on all COM ports | 1x DB9 + 2x RJ 50,5V/12V support on all COM ports | 1x DB9 + 2x RJ 50,5V/12V support on all COM ports |
Standard USB Port | 1x USB 3.0 + 5x USB 2.0 | 2x USB 3.0 + 6x USB 2.0 | 4x USB 3.0 + 4x USB 2.0 |
| OTG USB | 1x Micro-USB | N/A | N/A |
Display Port | 1x HDMI | 1x HDMI | 1x HDMI |
| LAN Port | 1x 10/100 Mb | 2x 10/100/1000 Mb | 2x 10/100/1000 Mb |
Audio | 2x Internal 3W speaker | 2x Internal 3W speaker | 2x Internal 3W speaker |
| Internal Expansion Slot | N/A | 1x M.2 | 1x M.2 |
Display & Touch
JK-2410/ JK-2432/ JK-2452 | |
|---|---|
LCD | 23.8″ |
| Resolution | 1920 x 1080 |
Touch | True-flat PCAP touch with multi-touch support |
Physical Dimension
JK-2410/ JK-2432/ JK-2452 | |
Dimension (W x D X H in millimeters) | 602 x 602 x 1740(Single or dual sided);400 x 139.5x 988(Wall-mounted) |
| Weight (in kilograms) | 48.8(Single sided); 60.8 (Dual sided); 20.5(Wall-mounted) |
Environmental
JK-2410/ JK-2432/ JK-2452 | |
Operating Condition | 0°C – 40°C, 20%RH – 90%RH |
| Storage Condition | -20°C – 70°C, 10%RH – 90%RH |
Standard Components
JK-2410 / JK-2432 / JK-2452 | |
Status Indicator | RGB Color LED indicator |
| Proximity Sensor | Range from 45cm to 80cm (for dark color objectives); Range from 45cm to 150cm (for light color objectives |
Camera | 1 MP wide angle camera |
| Printer | 3” thermal printer w/auto cutter, 250mm/sec max |
Optional Components
JK-2410 / JK-2432 / JK-2452 | |
WiFi | USB dongle (cannot coexist with 4G/LTE) |
| Scanner | 2D barcode scanner |
EMV Payment Device Bracket Support | Custom bracket support for various EMV payment devices |
| MSR | 3 tracks ISO or JISII (HID/VCOM selection) |
Fingerprint Sensor | Optical type |
| NFC/RFID Reader | Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols – tag read/write (ISO/IEC-18092) |
4G/LTE Communication | Support selected bands & countries with full SIM slot (mini-PCIe module) by request (cannot coexist with WiFi) |
Modular Ordering Kiosk for Self-Service Applications
The Ordering Kiosk Cachet has been designed for modern self-service processes and impresses with its clean, flush design and versatile functionality. Whether for ordering and payment, click & collect, or digital wayfinding – Cachet adapts flexibly to a wide variety of use cases and provides a consistently convenient user experience.
At its core is a brilliant 32-inch PCAP touchscreen with a highly responsive surface for intuitive operation. The kiosk is available as a single- or double-sided floor-standing model and can also be wall-mounted – making it ideal for quick service restaurants, retail environments, or high-traffic service areas.
Thanks to its modular design, Cachet is extremely maintenance-friendly and can be configured individually to meet specific requirements – for example with payment modules, printer, scanner, or digital displays for product information and guidance systems. Ticketing and e-reservation processes can also be integrated seamlessly.
Cachet is not only suitable as a dedicated ordering kiosk but can also be used as a digital information point, for product promotion, or for customer guidance. Its well-thought-out system architecture ensures long-term operational reliability – even in 24/7 continuous operation.
For anyone looking to purchase a future-ready digital ordering kiosk that combines design, flexibility, and technical performance, Cachet is a scalable solution for the next-generation point of service.
Perfect for self-service, ordering, and digital customer interaction: Ordering Kiosk Cachet.
Ordering Kiosk Features
Large Touch Display
32" PCAP touchscreen with an intuitive, flush user interface
Flexible Mounting Options
Available as single- or double-sided floor-standing model or wall-mounted version
Modular Design
Easy access & maintenance-friendly – built for long-term use
Self-Service Ready
Ordering, payment, click & collect, e-ticketing, and more
Reversible Printing Direction
Optimized print output – adaptable to location and workflow
Multifunctional Use
Perfect for wayfinding, product display, or digital reservations
FAQ zum Bestellterminal Cachet

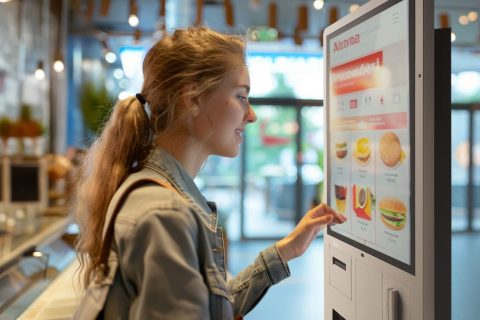

The kiosk is ideal for quick service restaurants, retail, leisure and event areas, as well as public facilities. It supports self-service ordering, payment, click & collect, e-ticketing, and digital wayfinding.
Yes, Cachet offers flexible installation options: single- or double-sided floor-standing models as well as wall-mounted versions, depending on available space and use case.
The kiosk is equipped with a generous 32-inch PCAP touchscreen, ensuring comfortable and intuitive operation for your customers.
Cachet supports modular payment components. Depending on the configuration, options include contactless payments (NFC), card payments (EMV), QR code-based systems, and more.
Yes, all components are designed for 24/7 operation. The robust build is optimized for high-traffic environments.
Yes. Thanks to its modular design, Cachet can be equipped with printers, scanners, cameras, payment modules, or additional peripherals as needed.
The kiosk is available in versions supporting both Windows and Android – depending on your software environment and requirements.
Cachet’s design ensures easy maintenance. Clear cable management and modular components allow quick access and straightforward replacement of individual parts.
Yes. In addition to ordering and payment, Cachet can serve as a digital information point for wayfinding, product advice, or advertising.
Yes, the interface language can be customized or set up for multiple languages – ideal for international use or tourist locations.
