Weatherproof Outdoor Terminal for Digital Guest Registration
The Outdoor Kiosk Wallmount is the ideal solution for hospitality businesses that want to make their reception area flexible and future-ready – directly outdoors. As a robust outdoor terminal, this system is perfect for hotels, resorts, holiday apartments, or campgrounds that want to offer guests easy, contactless self check-in – independent of opening hours or staff availability.
Benefits of our Outdoor Kiosk Wallmount:
- Digital guest registration outdoors – available 24/7
- Weatherproof and vandal-proof housing (IP65-certified)
- Ideal for hotels, resorts, vacation rentals, and campgrounds
- Capture of ID documents and personal data at the terminal
- Integrated signature function, camera, and receipt printing
- High-quality hardware for continuous outdoor operation
- Compatible with leading hotel software and booking systems
With the Outdoor Kiosk Wallmount, you make your check-in process more efficient and flexible. Guests can register comfortably before entering the building – directly at the wall-mounted terminal. All essential steps such as data entry, document verification, and digital signature are carried out securely and intuitively. Optional features include access code distribution or key card dispensing.
The Outdoor Kiosk Wallmount relieves your staff and optimizes the entire arrival process. As a weatherproof outdoor terminal, it provides a reliable access solution for modern hospitality concepts – user-friendly, secure, and efficient.
Outdoor Kiosk Wallmount – Specifications
Compact Outdoor Kiosk for Exterior Use

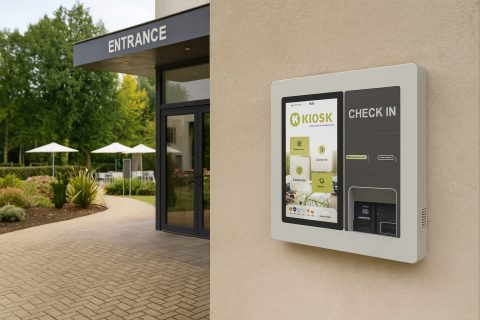

The Wallmount is a robust outdoor kiosk specifically designed for installation on exterior walls and for use in demanding outdoor environments. As a space-saving outdoor terminal, it combines durable materials with functional design – ideal for access control, ticketing, information systems, or guest registration outdoors.
Equipped with a 23.8-inch PCAP touch display and a flush-mounted monitor, the system provides a modern user interface that responds reliably to interactions. The powder-coated steel housing protects the hardware against dust and water jets in accordance with IP54, making it perfectly suited for year-round outdoor operation.
Thanks to its wall-mount design, the outdoor terminal requires no floor space and can be installed even in narrow entrances or sheltered outdoor areas. It supports all common payment methods – including modern, contactless options such as NFC payments with debit/credit cards, Apple Pay, or Google Pay. Additional components like barcode scanners or thermal printers can be integrated flexibly depending on the application.
High-quality industrial components ensure reliable 24/7 operation, even under heavy use or challenging environmental conditions.
If you are looking for a durable outdoor terminal that combines weather-resistant design, flexible features, and a modern appearance, the Wallmount is the ideal solution: compact, robust, and ready for use.
Wallmount 2.1 Kiosk1 MB
Paint Selection Guide458 KB
Kiosk Over All Brochure2 MBGeneral Information
Wallmount 2.1 | |
|---|---|
Product dimensions | 770 x 276 x 770 mm ( W x D x H ) |
| Max. Weight | ≈ 65 Kg* |
Chassis material | Iron sp 15/10 with first protective film and final polyester outdoor painting |
| Certifications | CE |
Semi-outdoor Certifications | IP 54 |
| Registered design | EUIPO |
Color | RAL 9016* |
| Surface finishing | Semi-gloss textured* |
Operating Temperature | (verification test in progress) |
| Storage Temperature | (verification test in progress) |
Working umidity Operating | 20 to 80% non-condensing @ 40°C* |
| Working umidity Storage | 10 to 90% non-condensing @ 40°C* |
Power data and frequency | 230 Vac, 50/60 Hz – 610 W |
| Compatiable POS’s | Castle S1U2 / PAX IM30 |
Camera | 5 MP Auto focus (6 cm – 300 cm) |
Specifikation
Wallmount 2.1 | |
|---|---|
RAM | 8GB DDR4* |
| CPU | Intel® Core™ i3 8145UE* |
Operating System | Windows® 11 IoT Enterprise (64 bit)* |
| Storage | 128 GB* |
Display
Wallmount 2.1 | |
|---|---|
Video orientation | Portrait |
| Display type | Full HD Touch – Anti Glare – UV Protection |
Resolution | 23.8 inches |
| Brightness | 800 cd/m² |
Touch Sensor | 10p PCAP |
| Contrast | 1000:1 |
Viewing angle | 89° from all sides |
| Backlight MTBF | 50000h at 25°C |
*data may change with different configurations
Outdoor Kiosk for Contactless Guest Access in Vacation Resorts
Wallmount is a weather-protected outdoor terminal for wall mounting, ideal for holiday resorts, tiny house villages, or other accommodations without a permanently staffed reception. As a full-featured self-service kiosk, it enables automated guest registration directly outdoors – intuitive, efficient, and available around the clock.
Via the 23.8-inch touchscreen, guests can select their booking or scan a confirmation QR code, make payments directly at the device, and receive either a receipt or a programmed access card at the end of the process.
The robust housing is designed for sheltered outdoor areas and reliably protects the technology from weather conditions. Thanks to its wall-mounted, space-saving design, the outdoor kiosk blends discreetly into entrance areas. For operators looking for a modern outdoor terminal for digital guest check-in, Wallmount offers a reliable and future-proof solution.
Perfect for decentralized holiday accommodations with self-check-in: the Wallmount outdoor terminal for digital guest reception in outdoor areas.
Outdoor Terminal Features
Durable Outdoor Design
Weather-resistant, IP54-certified, and vandal-proof. Perfect for long-term use as an outdoor kiosk.
23.8" Full-HD Touchscreen
Large anti-glare display with UV protection and high brightness – ideal for an outdoor terminal.
Simple Self-Service
Scan a QR code, enter data, complete the process. Intuitive, fast, and secure.
Contactless Payment
Optional payment terminal for card transactions and mobile payment services.
Perfect for Accommodations
Ideal for holiday resorts, apartments, or self-service facilities without a staffed reception.
Automatic Output
Issue room cards or receipts directly at the device – no staff, no waiting time.
FAQs About Our Outdoor Kiosk
The Wallmount system is specifically designed for holiday resorts, hotels, apartment complexes, or self-service accommodations with limited or no staffed reception. It enables smooth, automated guest check-in directly in the outdoor area.
Yes. The unit is IP54 certified, providing protection against dust and splashing water. It is designed for sheltered outdoor areas and operates reliably when protected from direct sunlight and extreme weather conditions.
The standard configuration comes with a 23.8-inch touchscreen, digital guest registration, QR code recognition, receipt printing, and—if configured—the issuance of access cards.
Yes. The Wallmount outdoor terminal is software-independent and can be connected with your specific applications such as booking systems, PMS, or access control solutions.
Optionally, the outdoor kiosk can be equipped with a modern payment module that supports contactless payments with debit cards, credit cards, or mobile payment solutions like Apple Pay and Google Pay.
The device runs on 230 V AC (50/60 Hz) with a maximum power consumption of 610 W. A standard power connection is sufficient.
Yes. The system can be expanded with a card dispenser module that automatically encodes and issues room or access cards—ideal for unattended self-check-in processes.
The Wallmount outdoor terminal measures approx. 770 × 276 × 770 mm (W × D × H) and is mounted directly on the wall, making it ideal for narrow entrances or sheltered pre-entrance areas.
The integrated 23.8-inch touchscreen is Full HD, anti-glare, UV-protected, and offers 800 cd/m² brightness for excellent readability—even in daylight.
Yes. The hardware is delivered pre-assembled and ready for connection. After installation and software integration, the system is usually operational in a short time. We are happy to support you with customization for your application.
