Modern POS terminal for interactive customer engagement
The POS Terminal Mercury is the ideal solution for businesses looking to digitally enhance their retail space. Whether as a digital signage kiosk, an information terminal, or an information kiosk – Mercury combines sleek design with intuitive operation, delivering a seamless customer experience right at the point of sale.
Key benefits of the POS Terminal Mercury:
- Direct sales with integrated payment functionality
- Versatile use as a POS kiosk or information kiosk
- Flexible control of digital signage kiosk content
- Interactive customer engagement directly at the POS
- Premium hardware built for 24/7 continuous operation
- Driving digitalization at the point of sale
With Mercury, you provide not only information but also interaction – for example, product advice, self-service, or targeted advertising displays. Best of all, purchases and payments can be completed directly at the POS terminal – without additional staff. As a modern digital information kiosk, the terminal is a true eye-catcher that strengthens customer loyalty and drives sales.
Investing in the POS Terminal Mercury means choosing a powerful, flexible system that enhances your point of sale with future-proof POS kiosk and digital signage kiosk capabilities.
Digital Signage Kiosk Mercury
Mercury EK Series – the versatile POS terminal for any environment
The Mercury EK Series is a modern POS terminal solution in a standardized kiosk design that offers maximum configuration flexibility. Equipped with a high-quality 15.6-inch or 21.5-inch LCD touchscreen – available in portrait or landscape orientation – the system works perfectly as both a digital signage kiosk and an interactive digital information kiosk.

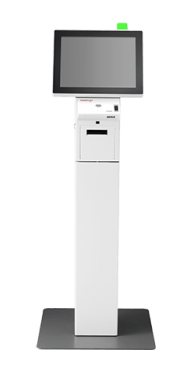

The elegant housing design comes in two versions: a free-standing model with a full base or a compact POS kiosk for mounting on counters and work surfaces. The flush-mounted PC unit and the projected capacitive (PCAP) touch display create a sleek, modern appearance that integrates seamlessly into retail and hospitality environments.
As a versatile information terminal, Mercury offers numerous expansion options: a side-mounted payment module (with multiple payment options), an integrated receipt printer, a 2D barcode scanner, and a proximity sensor make the terminal a complete self-service solution – including purchasing and payment directly at the device.
The core components of the Mercury POS terminal (except for the preferred payment device) are provided by industry leader Posiflex – globally recognized for reliable POS terminals with exceptional durability. Since both housing and hardware are directly available through the Posiflex Group, customers benefit from short lead times and attractive pricing.
If you are looking to buy a high-quality POS terminal that can serve as a digital signage kiosk, digital information kiosk, or information kiosk, the Mercury EK Series delivers a future-proof solution – functional, stylish, and ready to use.
EK-1500
EK-1600
2100
EK-2400
Mobile Touring Kiosk
Mercury Mobile Touring7 MB
Kiosk Over All Bruchure2 MB
EK-Mercury Series datasheet1 MBSpecification
EK-1510 | |
|---|---|
Proccessor | Rockchip RK3399, Dual-core Cortex A72 up to 1.8GHz + Quad-core Cortex A53 up to 1.4GHz |
| System Memory | DDR4 4 GB |
Storage Device | 32 GB eMMC + microSD slot x 1 |
| Intel vPro Support | N/A |
TPM Support | N/A |
| Power Supply | 12V/60W x 1 + 24V/60W x 1 |
OS Support | Android 9.0*/Android 10.0 with GMS |
| Serial Port | RJ50 x 2, 5V/12V support on all COM ports |
Standard USB Port | 6, USB 3.0 x 1 + USB 2.0 x 5 |
| OTG USB | Micro-USB x 1 |
Display Port | HDMI x 1 |
| LAN Port | 10/100 Mb x 1 , 10/100/1000 Mb x 1 |
Audio | Internal 3W speaker x 2 |
| Expansion Slot | N/A |
Display & Touch
EK-1510 | |
|---|---|
LCD | 15” |
| Resolution | 1024 x 768 |
Touch | True-flat PCAP touch with multi-touch support |
Physical Dimension
| EK-1510 | |
|---|---|
| Dimension (Height, Width, Depth in millimeters) | Countertop version (Landscape): 395 x 395 x 550 Floorstanding version (Landscape): 500 x 500 x 1325 |
| Weight (in kilograms) | Countertop version: 18.8 Floorstanding version: 31 |
Environmental
EK-1510 | |
|---|---|
Operating Condition | 0°C – 40°C, 20%RH – 90%RH |
| Storage Condition | -20°C – 70°C, 10%RH – 90%RH |
Standard Components
EK-1510 | |
|---|---|
Proximity Sensor | 1. Range from 45cm ~ 80cm (for dark color object) 2. Range from 45cm ~ 150cm (for light color object) |
Camera | 1MP wide angle camera |
| Printer | 3″ thermal printer w/auto cutter, 200 mm/sec (max.) |
Optical Components
EK-1510 | |
|---|---|
WiFi | USB dongle |
| Status Indicator | RGB Color LED Indicator |
Scanner | 2D barcode scanner |
| Fingerprint sensor | Optical type |
EMV Payment Device Bracket Support | Custom bracket support for various EMV payment devices (Posiflex does not sell the EMV payment devices, but can provide bracket support with an additional charge) |
NFC / RFID Reader | Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols – tag read/write (ISO/IEC-18092) |
Note | Google Play services is not supported by this device. |
Specification
EK-1610 | EK-1630 | EK-1650 | |
|---|---|---|---|
Proccessor | Dual Cortex-A72 + Quad Cortex-A53 | Intel Bay Trail J1900, Quad Core, up to 2.42 GHz, 2M Cache | Intel 7th Generation Kaby Lake U Core i3/i5 |
| System Memory | DDR4, 2 GB | DDR3L SO-DIMM slot x 1, max. 8 GB | DDR4 SO-DIMM slot x 1, max. 16 GB |
Strorage Device | 16 GB eMMC | SATA SSD x 1 | SATA SSD x 1 |
| Power Supply | 12V/60W x 1 + 24V/60W x 1 | 12V/60W x 1 + 24V/60W x 1 | 12V/60W x 1 + 24V/60W x 1 |
OS Support | Android 9.0 | Win 7/POSReady 7/ WE 8.1 Industry/Win 10 IoT | Windows 10 IoT 64 bit Serial Port RJ50 x 2 3, RJ50 x 2 + DB9 x 1 |
| Standard USB Port | 6, USB 3.0 x 1+ USB 2.0 x 5 | 8, USB 3.0 x 1+ USB 2.0 x 7 | 8, USB 3.0 x 2 + USB 2.0 x 6 |
OTG USB | 1, micro-USB x 1 | N/A | N/A |
| Display Port | HDMI x 1 | HDMI x 1 | HDMI x 1 |
LAN Port | 10/100/1000 Mb x 2 | 10/100/1000 Mb x 2 | 10/100/1000 Mb x 2 |
| Audio | Internal 3W speaker x 2 | Internal 3W speaker x 2 | Internal 3W speaker x 2 |
Internal Expansion Slot | N/A | M.2 x 1 | M.2 x 1 |
Display & Touch
EK-1610 / EK-1630 / EK-1650 | |
|---|---|
LCD | 15.6” |
| Resolution | 1920 x 1080 |
Touch | True-flat PCAP touch with multi-touch support |
Physical Dimension
EK-1610 / EK-1630 / EK-1650 | |
|---|---|
Dimension (Height, Width, Depth in millimeters) | Countertop version Portrait: 395 x 395 x 646, Landscape: 395 x 395 x 513, Floorstanding version Portrait: 500 x 500 x 1420, Landscape: 500 x 500 x 1286 |
Weight (in kilograms) | Countertop version: 18.2, Floorstanding version: 30.4 |
Standard Components
EK-1610 / EK-1630 / EK-1650 | |
|---|---|
Proximity Sensor | Range from 60 cm to 100 cm |
| Camera | 1MP wide angle camera |
Printer | 3” thermal printer w/auto cutter, 200 mm/sec (max.) |
Optional Components
EK-1610 | EK-1630 | EK-1650 | |
|---|---|---|---|
WiFi | USB dongle | M.2 WiFi/BT module | M.2 WiFi/BT module |
Status Indicator | RGB Color LED Indicator (for portrait mode only) | RGB Color LED Indicator (for portrait mode only) | RGB Color LED Indicator (for portrait mode only) |
Scanner | 2D barcode scanner | 2D barcode scanner | 2D barcode scanner |
EMV Payment Device Bracket Support | Custom bracket support for various EMV payment devices | Custom bracket support for various EMV payment devices | Custom bracket support for various EMV payment devices |
NFC / RFID Reader | N/A | Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols – tag read/write (ISO/IEC-18092) | Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols – tag read/write (ISO/IEC-18092) |
Scanner | Support selected bands & countries with full SIM slot (mini-PCIe module) by request | Support selected bands & countries with full SIM slot (mini-PCIe module) by request | Support selected bands & countries with full SIM slot (mini-PCIe module) by request |
Specification
EK-2110 | EK-2130 | EK-2150 | |
|---|---|---|---|
Proccessor | Dual Cortex-A72 + Quad Cortex-A53 | Intel Bay Trail J1900, Quad Core, up to 2.42 GHz, 2M Cache | Intel 7th Generation Kaby Lake UCore i3/i5 |
System Memory | DDR4, 2 GB | DDR3L SO-DIMM slot x 1, max. 8 GB | DDR4 SO-DIMM slot x 1, max. 16 GB |
Strorage Device | 32 GB eMMC + microSD slot x 1 | M.2 SSD [SATA Signal Only] x 1 | M.2 SSD [SATA Signal Only] x 1 |
Power Supply | 12V/60W x 1 + 24V/60W x 1 | 12V/60W x 1 + 24V/60W x 1 | 12V/60W x 1 + 24V/60W x 1 |
OS Support | Android 9.0 | Win 7/POSReady 7/ WE 8.1 Industry/Win 10 IoT | Windows 10 IoT 64 bit Serial Port RJ50 x 2 3, RJ50 x 2 + DB9 x 1 |
Standard USB Port | 6, USB 3.0 x 1+ USB 2.0 x 5 | 8, USB 3.0 x 1+ USB 2.0 x 7 | 8, USB 3.0 x 2 + USB 2.0 x 6 |
OTG USB | 1, micro-USB x 1 | N/A | N/A |
Display Port | HDMI x 1 | HDMI x 1 | HDMI x 1 |
LAN Port | 10/100/1000 Mb x 2 | 10/100/1000 Mb x 2 | 10/100/1000 Mb x 2 |
Audio | Internal 3W speaker x 2 | Internal 3W speaker x 2 | Internal 3W speaker x 2 |
Internal Expansion Slot | N/A | M.2 x 1 | M.2 x 1 |
Display & Touch
EK-2110 / EK-2130 / EK-2150 | |
|---|---|
LCD | 21.5” |
| Resolution | 1920 x 1080 |
Touch | True-flat PCAP touch with multi-touch support |
Physical Dimension
EK-2110 / EK-2130 / EK-2150 | |
|---|---|
Dimension (Height, Width, Depth in millimeters) | Countertop version Portrait: 395 x 395 x 646, Landscape: 395 x 395 x 513, Floorstanding version Portrait: 500 x 500 x 1420, Landscape: 500 x 500 x 1286 |
Weight (in kilograms) | Countertop version: 18.2, Floorstanding version: 30.4 |
Physical Dimension
EK-2110 / EK-2130 / EK-2150 | |
|---|---|
Dimension (Height, Width, Depth in millimeters) | Countertop version Portrait: 395 x 395 x 774, Landscape: 395 x 395 x 588 , Floorstanding version Portrait: 500 x 500 x 1548, Landscape: 500 x 500 x 1362 |
Weight (in kilograms) | Countertop version: 22.6, Floorstanding version: 34.8 |
Standard Components
EK-2110 / EK-2130 / EK-2150 | |
|---|---|
Proximity Sensor | Range from 60 cm to 100 cm |
Camera | 1MP wide angle camera |
| Printer | 3” thermal printer w/auto cutter, 200 mm/sec (max.) |
Optional Components
EK-2110 | EK-2130 | EK-2150 | |
|---|---|---|---|
WiFi | USB dongle | M.2 WiFi/BT module | M.2 WiFi/BT module |
| Status Indicator | RGB Color LED Indicator (for portrait mode only) | RGB Color LED Indicator (for portrait mode only) | RGB Color LED Indicator (for portrait mode only) |
Scanner | 2D barcode scanner | 2D barcode scanner | 2D barcode scanner |
| EMV Payment Device Bracket Support | Custom bracket support for various EMV payment devices | Custom bracket support for various EMV payment devices | Custom bracket support for various EMV payment devices |
NFC / RFID Reader | N/A | Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols – tag read/write (ISO/IEC-18092) | Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols – tag read/write (ISO/IEC-18092) |
| SIM Card | Support selected bands & countries with full SIM slot (mini-PCIe module) by request | Support selected bands & countries with full SIM slot (mini-PCIe module) by request | Support selected bands & countries with full SIM slot (mini-PCIe module) by request |
Specification
EK-2430 | EK-2450 | |
|---|---|---|
Proccessor | Intel Bay Trail J1900 Quad Core, up to 2.42 GHz, 2M Cache | Intel Kaby Lake U Core i3/i5 |
| System Memory | DDR3L SO-DIMM slot x 1, max. 8 GB | DDR4 SO-DIMM slot x 1, max. 16 GB |
Strorage Device | M.2 SSD [SATA Signal Only] x 1 | M.2 SSD [SATA Signal Only] x 1 |
| Intel vPro Support | N/A | Core i3: N/A Core i5: Optional |
TPM Support | Optional | Optional |
| Power Supply | 12V/60W x 1 + 24V/60W x 1 | 12V/60W x 1 + 24V/60W x 1 |
OS Support | Windows 7/POSReady 7/Windows Embedded 8.1 Industry/Windows 10 IoT | Windows 10 IoT 64 bit |
| Serial Port | 3, DB9 x 1 + RJ50 x 2, 5V/12V support on all COM ports | 3, DB9 x 1 + RJ50 x 2, 5V/12V support on all COM ports |
Standard USB Port | 8, USB 3.0 x 1+ USB 2.0 x 7 | 8, USB 3.0 x 2 + USB 2.0 x 6 |
| OTG USB | N/A | N/A |
Display Port | HDMI x 1 | HDMI x 1 |
| LAN Port | 10/100/1000 Mb x 2 | 10/100/1000 Mb x 2 |
Audio | Internal 3W speaker x 2 | Internal 3W speaker x 2 |
| Internal Expansion Slot | M.2 x 1 | M.2 x 1 |
Display & Touch
EK-2430 / EK-2450 | |
|---|---|
LCD | 23.8″ |
Resolution | 1920 x 1080 |
| Touch | True-flat PCAP touch with multi-touch support |
Physical Dimension
EK-2430 / EK-2450 | |
|---|---|
Dimension (W x D x H in mm) | Countertop version (Portrait): 395 x 395 x 802 Floorstanding version (Portrait): 500 x 500 x 1576 Countertop version (Landscape): 575 x 395 x 601 Floorstanding version (Landscape): 575 x 500 x 1377 |
| Weight (in kilograms) | Countertop version: 23.9 |
Environmental
EK-2430 / EK-2450 | |
|---|---|
Operating Condition | 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD) |
| Storage Condition | -20°C – 70°C, 10%RH – 90%RH |
Standard Components
EK-2430 / EK-2450 | |
|---|---|
Status Indicator | – |
| Proximity Sensor | 1. Range from 45cm ~ 80cm (for dark color object) 2. Range from 45cm ~ 150cm (for light color object) |
Camera | 1MP wide angle camera |
| Printer | 3″ thermal printer w/auto cutter, 200 mm/sec (max.) |
Optional Components
EK-2430 / EK-2450 | |
|---|---|
Status Indicator | RGB Color LED Indicator (for portrait mode only) |
| WiFi | M.2 WiFi/BT module |
Scanner | 2D barcode scanner |
| EMV Payment Device Bracket Support* | Custom bracket support for various EMV payment devices (Posiflex does not sell the EMV payment devices, but can provide bracket support with an additional charge) |
MSR | – |
| Fingerprint Sensor | Optical type |
NFC/RFID Reader | Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols – tag read/write (ISO/IEC-18092) |
| 4G / LTE Communication | Support selected bands & countries with full SIM slot (mini-PCIe module) by request |
PowerGuard | – |
| Optional Items for Pedestal PT-200BC | – |
Optional Item for Pedestal PT-300 | – |
| Default Items for Pedestal PT-500 | – |
* The product information and specifications are subject to change without prior notice. |
Specification
| MTK-1610 | MTK-1630 | MTK-1650 | |
|---|---|---|---|
| Proccessor | Dual Cortex-A72 + Quad Cortex-A53 | Intel Bay Trail J1900, Quad Core, up to 2.42 GHz, 2M Cache | Intel 7th Generation Kaby Lake U Core i3/i5 |
| System Memory | DDR4, 2 GB | DDR3L SO-DIMM slot x 1, max. 8 GB | DDR4 SO-DIMM slot x 1, max. 16 GB |
| Strorage Device | 16 GB eMMC | SATA SSD x 1 | SATA SSD x 1 |
| Power Supply | 12V/60W x 1 + 24V/60W x 1 | 12V/60W x 1 + 24V/60W x 1 | 12V/60W x 1 + 24V/60W x 1 |
| OS Support | Android 9.0 | Win 7/POSReady 7/ WE 8.1 Industry/Win 10 IoT | Windows 10 IoT 64 bit |
| Serial Port | RJ50 x 2 | 3, RJ50 x 2 + DB9 x 1 | 3, RJ50 x 2 + DB9 x 1 |
| Standard USB Port | 6, USB 3.0 x 1+ USB 2.0 x 5 | 8, USB 3.0 x 1+ USB 2.0 x 7 | 8, USB 3.0 x 2 + USB 2.0 x 6 |
| OTG USB | 1, micro-USB x 1 | N/A | N/A |
| Display Port | HDMI x 1 | HDMI x 1 | HDMI x 1 |
| LAN Port | 10/100/1000 Mb x 2 | 10/100/1000 Mb x 2 | 10/100/1000 Mb x 2 |
| Audio | Internal 3W speaker x 2 | Internal 3W speaker x 2 | Internal 3W speaker x 2 |
| Internal Expansion Slot | N/A | M.2 x 1 | M.2 x 1 |
Display & Touch
| EK-1610 / EK-1630 / EK-1650 | |
|---|---|
Display | 15.6” |
| Auflösung | 1920 x 1080 |
Touch | True-flat PCAP touch with multi-touch support |
Physical Dimension
EK-1610 / EK-1630 / EK-1650 | |
|---|---|
Dimension (Height, Width, Depth in millimeters) | 1610 x 395x 395 |
| Weight (in kilograms) | 30.4 |
Environmental
| EK-1610 | EK-1630 | EK-1650 | |
|---|---|---|---|
Operating Condition | 0°C – 50°C, 20%RH – 90%RH | 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD) | 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD |
| Storage Condition | -20°C 60°C, 10%RH – 90%RH | -20°C 60°C, 10%RH – 90%RH | -20°C 60°C, 10%RH – 90%RH |
Standard Components
| EK-1610 / EK-1630 / EK-1650 | |
|---|---|
Proximity Sensor | Range from 60 cm to 100 cm |
| Camera | 1MP wide angle camera |
Printer | 3” thermal printer w/auto cutter, 200 mm/sec (max.) |
Optional Components
| EK-1610 | EK-1630 | EK-1650 | |
|---|---|---|---|
WiFi | USB dongle | M.2 WiFi/BT module | M.2 WiFi/BT module |
| Status Indicator | RGB Color LED Indicator (for portrait mode only) | RGB Color LED Indicator (for portrait mode only) | RGB Color LED Indicator (for portrait mode only) |
Scanner | 2D barcode scanner | 2D barcode scanner | 2D barcode scanner |
| EMV Payment Device Bracket Support | Custom bracket support for various EMV payment devices | Custom bracket support for various EMV payment devices | Custom bracket support for various EMV payment devices |
NFC / RFID Reader | N/A | Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols – tag read/write (ISO/IEC-18092) | Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols – tag read/write (ISO/IEC-18092) |
| Scanner | Support selected bands & countries with full SIM slot (mini-PCIe module) by request | Support selected bands & countries with full SIM slot (mini-PCIe module) by request | Support selected bands & countries with full SIM slot (mini-PCIe module) by request |

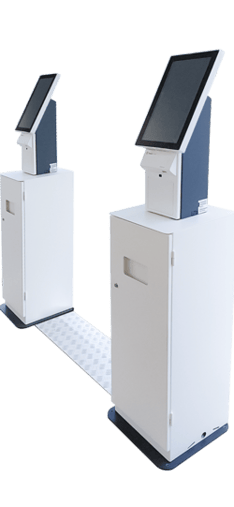

Mobile Touring Kiosk – the portable POS terminal
The latest compact, portable version of Mercury, the Mobile Touring Kiosk, is designed as a mobile POS kiosk and is the ideal solution for temporary use at changing locations. Easy to transport – six units fit securely packed in a flight case on a single Euro pallet – and quick to set up on-site, this POS terminal is perfect for events, trade fairs, festivals, or temporary reception scenarios.
Despite its compact design, the mobile information terminal impresses with powerful technology: it integrates an Epson 3500 printer for tickets and IDs as well as a QR code scanner for access control. The kiosk can also be combined with facial recognition solutions – ideal for automated reservations and check-ins at entrances.
Whether used as a digital information kiosk, a digital signage kiosk, or a standalone POS terminal, the Mobile Touring Kiosk offers maximum flexibility in a smart, transport-optimized format. For businesses looking to purchase a modern, portable POS terminal, this solution delivers top-level functionality, design, and mobility.
Perfect for mobile use as a POS terminal: Mobile Touring Kiosk Mercury.

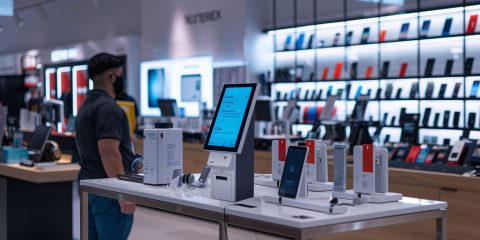

Features of the Digital Information Kiosk Mercury
Flexible operating system
Compatible with Windows and Android – for maximum software freedom.
Versatile display options
15.6" or 21.5" PCAP touchscreen, available in portrait or landscape orientation.
Compact design
Flush-mounted PC without bezels – space-saving and modern.
Modular peripherals
Expandable with EMV payment module, 2D scanner, receipt printer, and NFC/RFID reader.
Reliable hardware
Premium components from Posiflex – built for long-lasting 24/7 operation.
Easy maintenance
Quick access and clean cable management – ensuring minimal downtime.
FAQs about the POS Terminal Mercury
Mercury is a versatile POS terminal that can be used as a POS kiosk, a digital information kiosk, or a digital signage kiosk. It combines modern design with powerful technology to deliver interactive self-service solutions.
The POS terminal is available with a 15.6-inch or 21.5-inch touchscreen – in either portrait or landscape format. This makes it suitable for both compact information terminals and eye-catching digital signage kiosk applications.

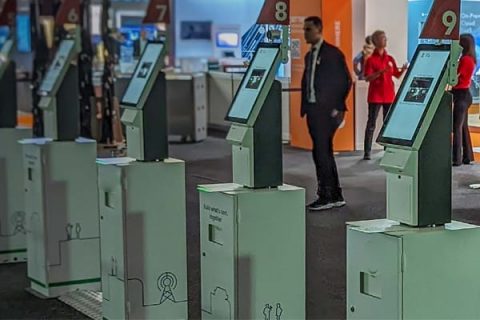

Yes, Mercury is also available as the Mobile Touring Kiosk. This lightweight, portable POS kiosk is designed for temporary use at events, trade shows, or pop-up stores.
Yes, Mercury supports EMV-compliant payment solutions as well as NFC/RFID – enabling contactless payments directly at the device.
The Mercury POS terminal is compatible with both Windows and Android – depending on your software requirements and use case.
Absolutely. Its modular design allows integration with scanners, printers, payment modules, cameras, or other components – making it a highly adaptable information kiosk.
You can purchase the POS terminal directly through our sales team or via authorized partners. We are happy to provide a customized quote, including accessories and service packages. Please contact us directly!
Mercury is ideal for retail, hospitality, hotels, museums, or public institutions – anywhere a digital information kiosk or interactive information terminal is needed.
In addition to standard security features, the POS kiosk also supports access control via QR code scanning or facial recognition – particularly useful for event environments.
Thanks to stocked components and production by our parent company Posiflex, customers benefit from short lead times, fast availability, and a reliable support network.
Let’s talk about your project
Looking for a customized offer for our POS terminals?
Our experts will guide you personally and show you how our digital signage kiosk solutions can be perfectly tailored to your needs.
Peter Ahne
is our POS terminal expert. He’s excited to help you find the right solution and is looking forward to your message.
